Explosion-Proof Thermographic Network Bullet Camera

Explosion-Proof Thermographic Network Bullet Camera

Models: TR-TD2528-FZ

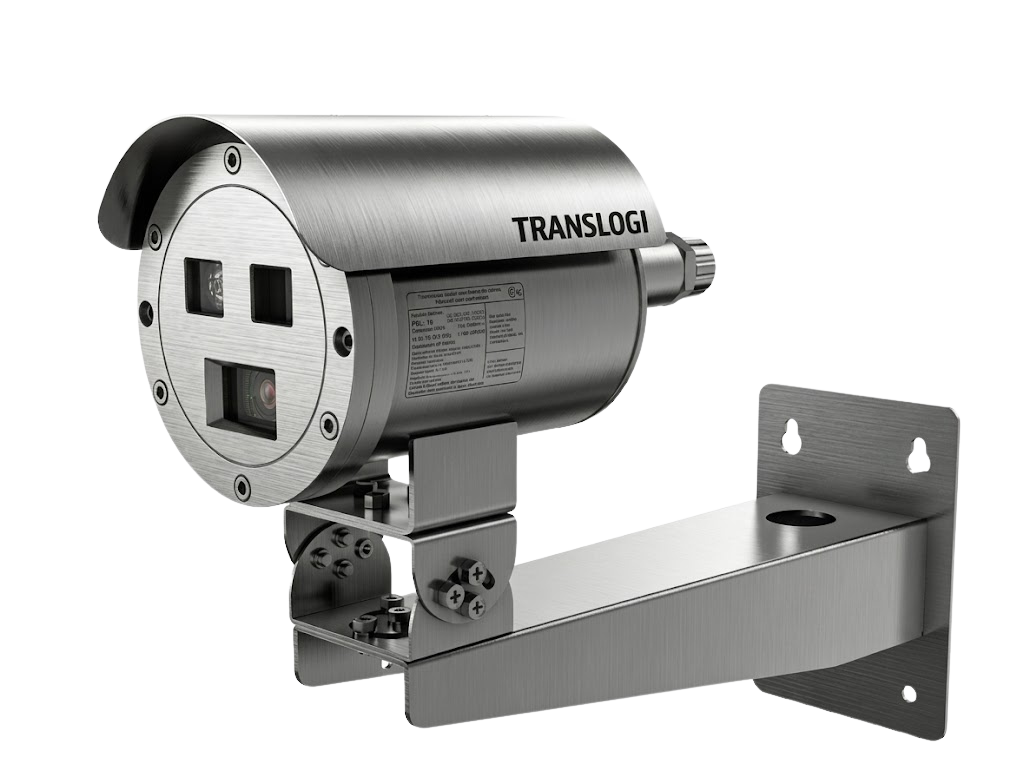

The TRANSLOGI TR-TD2528-FZ is a 4MP explosion-proof optical and thermal network bullet camera, crafted from highly durable 316L stainless steel with IP68 and IK10 ratings, specifically designed to provide reliable perimeter protection and early fire and smoke detection for hazardous environments

256 × 192 resolution, 12 μm, VOx UFPA, NETD ≤ 40 mK (25°C, F1.0)
Temperature exception alarm for fire prevention, -20°C to 650°C (-4°F to 1202°F), Max. (±2°C, ±2%)
Supports fire detection and smoke detection algorithms
Supports sun-reflection filter and forklift alarm filter algorithm (forklift alarm filter is exclusive with VCA function)
Powerful perimeter protection functions based on intelligent algorithms: line crossing, intrusion, region entrance, and region exit detection
316L stainless steel enclosure, protecting the camera in corrosive environments

Get pricing

Datasheet

3D-DNR

3D Digital Noise Reduction (3D DNR) technology is integrated to automatically filter and eliminate video noise. This feature provides clearer and crisper surveillance images, which is especially useful in environments with complex lighting conditions.

Line crossing

This is part of the smart perimeter protection algorithm (VCA). The camera will automatically detect and trigger an alert when a target (such as a human or vehicle) moves across a pre-defined virtual boundary line.

Fire detection

The camera utilizes a dynamic fire detection algorithm. This capability allows the device to detect up to 10 fire points simultaneously, aiding in the early detection and effective prevention of fire disasters in hazardous areas.

Intrusion-detection

Along with line crossing, this is another powerful VCA rule for security perimeter protection. The system will immediately issue an alert if it detects a target intruding into a pre-configured region.

Temperature exception

This feature measures and issues alarms when the temperature exceeds a specific limit to prevent fires. The camera supports a very wide temperature measurement range from -20 °C to 650 °C (-4 °F to 1202 °F) with high accuracy (Max ± 2 °C, ± 2%). Users can set up to 21 different temperature measurement rules (including 10 points, 10 areas, and 1 line).

Automatic Gain Control

AGC technology automatically amplifies the video signal to enhance the brightness of the frame when the camera operates in low-light environments. Thanks to AGC, the device can capture color images in extremely low light conditions at just 0.05 Lux, and black and white images at 0.01 Lux.

Bi-spectrum Dual Lens and Smart Fire Warning

The TRANSLOGI TR-TD2528-FZ camera is equipped with a bi-spectrum monitoring system that perfectly combines a crisp 4-Megapixel optical lens with an ultra-sensitive thermal sensor to provide clear surveillance in all conditions. Simultaneously, this thermal platform enables the camera to continuously measure temperatures across a wide range from -20 °C to 650 °C. As a result, the device can automatically detect smoke, identify smoking behavior, and issue early warnings for up to 10 fire points simultaneously, making it an exceptionally effective and proactive fire prevention solution.
