Bi-spectrum Thermography Network Bullet Camera

Bi-spectrum Thermography Network Bullet Camera

Models: TR-TD2618-T1A

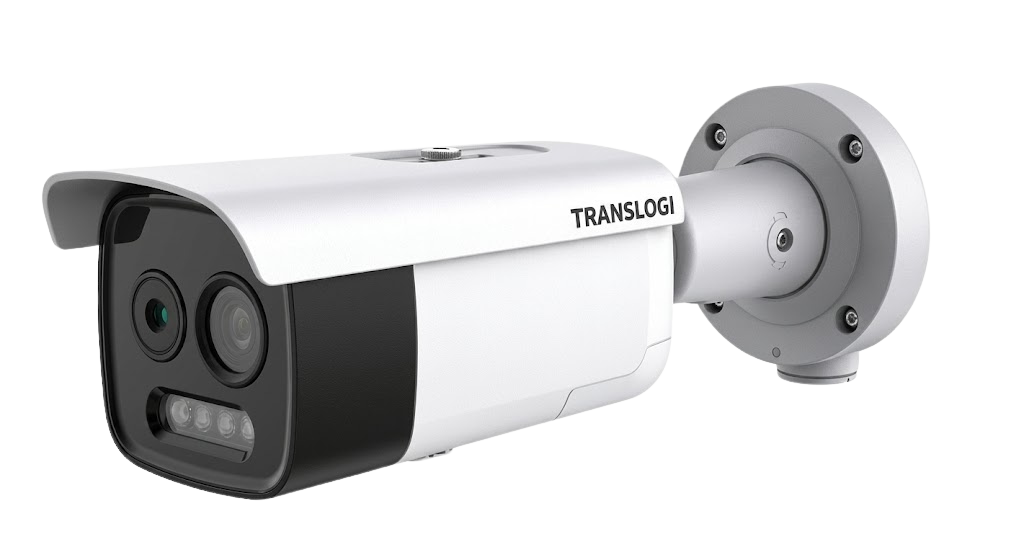

The TRANSLOGI TR-TD2618-T1A is a highly durable 5 MP dual-vision optical and thermal network bullet camera with IP67 and IK10 ratings, specifically providing highly accurate temperature measurement and smart fire and smoke detection solutions for areas such as electrical substations and manufacturing plants

Dual-vision fusion: Thermal + Optical
High quality imaging with 5 MP resolution
160 × 120 resolution, 12 μm, VOx UFPA, NETD < 25 mK (25°C, F# = 1.0)
High accuracy temperature exception alarm, -20°C to 150°C (-4°F to 302°F), ±8°C (±14.4°F)
Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
Supports smoking detection algorithm
Supports sun-reflection filter
Water and dust resistant (IP67) and vandal-resistant (IK10)

Get pricing

Datasheet

Line-crossing

This is one of the four types of smart Video Content Analysis (VCA) rules supported by the camera. This feature automatically detects and triggers an alarm when a target moves across a user-defined virtual boundary line.

Intrusion-detection

Also part of the VCA rule set, this feature helps protect security perimeters by monitoring and immediately triggering an alarm if an object enters and intrudes into a pre-configured zone.

Temperature-exception

The device supports high-accuracy temperature measurement and exception alarms. The measurable temperature range spans from -20 °C to 150 °C with an accuracy of ± 8 °C. Users can set up to 21 different temperature measurement rules for strict monitoring of specific equipment or areas.

Power over Ethernet

The camera supports the PoE network power standard (802.3at, class 4). This technology allows for the simultaneous transmission of both image data and power over a single network cable, optimizing and simplifying the installation process.

Bi-spectrum Vision, Active Deterrence, and Ultimate Durability

The TRANSLOGI TR-TD2618-T1A camera creates a complete security loop through seamless technological integration. The Bi-spectrum Vision foundation fuses thermal and optical imaging, enabling the device to maintain clear observation and early detect fire risks or temperature fluctuations. This responsiveness instantly triggers the Active Deterrence feature, utilizing audible alerts and flashing white lights to provide immediate on-site warnings. This entire cycle of "smart detection and instant warning" is continuously protected in harsh environments by its Ultimate Durability design, achieving IP67 water/dust resistance and IK10 vandal resistance standards.
